Why Elevated Garden Beds Change Soil Dynamics

A raised garden bed with legs is not simply a box lifted off the ground. It is a controlled soil system separated from native ground conditions. The elevation alters drainage behavior, thermal retention, root oxygen access, and pest exposure. Beginners often focus on convenience – reduced bending and cleaner edges – but the structural difference is biological, not cosmetic. When soil is lifted above ground level, gravitational drainage accelerates. Excess water exits more efficiently. Oxygen replenishes faster. Root respiration improves. These factors directly influence plant survival rates.

Elevated beds also isolate root zones from compacted native soil. In ground-level beds, roots eventually interact with subsoil layers that may be clay-heavy, poorly aerated, or nutrient inconsistent. In a raised bed with legs, the entire root environment remains engineered and predictable. This is one reason beginner gardeners experience fewer failures when transitioning from open ground planting to contained systems. Structural predictability reduces environmental mismatch, which is why plant selection remains critical, as explained in Best Beginner Plants – Easy Plants That Grow Anywhere.

Structural Load and Stability Considerations

When a raised garden bed is elevated on legs, weight becomes the primary engineering concern. Soil is heavy. Wet soil is significantly heavier. A standard 4 ft by 2 ft raised bed filled 12 inches deep can exceed 300 to 400 kilograms depending on soil composition and moisture saturation. The legs must distribute vertical load evenly while preventing lateral sway.

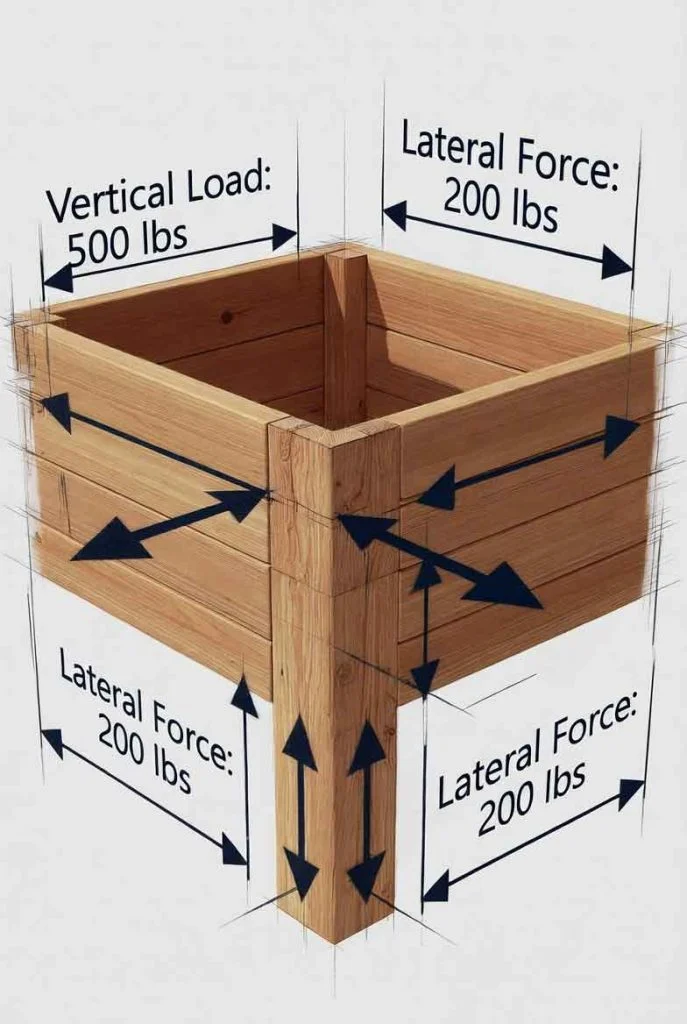

There are three structural forces acting on a raised garden bed with legs:

Vertical compression load from soil weight
Lateral shear stress from wind or uneven placement
Torsional stress from uneven watering and soil shifting

If legs are thin or unsupported, micro-movements begin over time. Screws loosen. Wood joints weaken. Eventually the structure warps. This is why simple stacking designs without cross-bracing often fail after one or two seasons.

Load stability requires:

Leg thickness minimum 2×2 inch hardwood or cedar
Cross-bracing between legs
Reinforced corner joints
Weather-resistant screws rather than nails

Elevated beds must be treated as load-bearing furniture, not decorative containers.

Choosing the Right Wood – Chemical and Durability Factors

Wood selection determines lifespan and soil safety. Many beginner guides overlook chemical leaching risk. Pressure-treated wood manufactured before 2003 often contained chromated copper arsenate. Modern treatments are safer but still introduce copper-based compounds into soil over time.

Preferred wood choices:

Cedar
Redwood
Untreated hardwood
Douglas fir for budget builds

Cedar and redwood contain natural rot resistance due to inherent oils. These woods tolerate moisture exposure without chemical treatment.

Avoid:

Railroad ties
Creosote-treated lumber
Unknown reclaimed wood

Chemical contamination affects root systems long term. If growing edible crops, untreated or naturally rot-resistant wood is the safest structural choice.

Soil Layering Inside Elevated Beds

Elevated beds require a layered approach to soil design. Because the bed is suspended, gravity accelerates drainage. Without proper layering, nutrients wash out too quickly and roots dry faster than expected.

Optimal layering structure:

Bottom layer – coarse organic matter such as small branches or coconut coir for drainage buffer
Middle layer – compost-rich loam blend
Top layer – fine-textured planting mix

This stratification slows nutrient runoff while maintaining oxygen availability. Beginners often fill the entire bed with uniform potting mix, which leads to uneven moisture retention.

Soil layering transforms the raised bed into a controlled ecosystem rather than a container filled with dirt.

Drainage Design in Raised Garden Beds With Legs

Unlike ground beds, elevated beds have no natural subsoil absorption. All excess water must exit through base openings. Without sufficient drainage holes, water accumulates at the bottom layer, increasing root rot risk.

Drainage openings should:

Be evenly spaced across base
Allow airflow as well as water exit
Remain unclogged by fine soil particles

Lining the base with breathable landscape fabric prevents soil loss while maintaining airflow. Plastic liners should only be used selectively, as full plastic barriers trap moisture.

Overwatering is one of the most common beginner errors. Elevated beds reduce this risk, but they do not eliminate it. Soil dryness should still be assessed manually or with moisture measurement tools.

Step-by-Step Construction Blueprint – Structural Accuracy First

Building a raised garden bed with legs begins with precision planning, not cutting wood. Most structural failures originate from poor measurement alignment and underestimated load distribution. Before assembling materials, determine three variables: final height, internal depth, and crop type. Height affects ergonomic comfort and wind resistance. Internal depth determines root viability. Crop type influences soil weight.

For most beginners, a balanced configuration is:

Length – 4 feet
Width – 2 feet
Soil depth – 10 to 12 inches
Total height – 28 to 34 inches including legs

This configuration supports leafy greens, herbs, and compact vegetables without exceeding structural limits. Larger beds require reinforcement.

Step 1 – Frame Construction

Cut two long boards and two short boards to form a rectangular box. Use 2×8 or 2×10 cedar boards for optimal durability. Join corners using exterior-grade screws, not nails. Pre-drill pilot holes to prevent wood splitting.

Ensure corners are square before fastening. A speed square or carpenter’s square prevents minor angular deviation that later causes imbalance. Structural accuracy at this stage determines long-term stability.

Step 2 – Leg Attachment Geometry

Legs must extend at least 2 inches above the soil base for structural anchoring. Use 4×4 posts for maximum stability or doubled 2×4 supports if budget constrained.

Attach legs inside the frame corners, not outside. Interior mounting distributes weight vertically rather than outward. Secure each leg with at least four corrosion-resistant screws per side.

Avoid attaching legs flush without reinforcement. Add horizontal cross braces between legs on at least two sides. This prevents lateral sway during heavy watering or strong wind exposure.

Step 3 – Base Support System

The base must hold soil weight without sagging. Options include:

Cedar slats spaced 1 to 1.5 inches apart
Exterior plywood with drilled drainage holes
Galvanized steel mesh with wood support frame

Slats are preferred for airflow and weight distribution. Ensure slats run perpendicular to the shorter side for structural efficiency.

If using plywood, drill drainage holes every 4 to 6 inches. Without adequate openings, water stagnation increases fungal risk.

Step 4 – Elevation Height Optimization

Height influences root temperature and moisture evaporation. Taller beds warm faster in spring but dry more quickly in summer.

Recommended heights:

24 to 28 inches – ergonomic comfort with moderate soil volume
30 to 34 inches – optimal for leafy greens and herbs
36 inches or higher – requires reinforced leg bracing

Overly tall beds without reinforcement create tipping risk.

Wind exposure must be considered in high-rise balconies or open patios. Elevated beds act as sails when filled with tall plants. Cross-bracing significantly reduces movement.

Cost Breakdown – Material Economics

Cost varies depending on wood selection and hardware quality.

Average material costs:

Cedar boards – mid to high range
Redwood – higher range
Douglas fir – budget range
Galvanized screws – essential
Landscape fabric – minimal cost

Estimated cost range for 4×2 bed:

Budget build – moderate cost using fir
Mid-tier build – higher cost using cedar
Premium build – highest durability redwood

Hardware quality affects lifespan more than wood thickness alone.

Cheap screws corrode quickly, leading to joint loosening.

Long-term cost efficiency favors durable hardware.

Weatherproofing and Longevity Strategy

Elevated beds experience moisture cycling from both soil contact and external rainfall.

Protective strategies include:

Natural oil sealants safe for edible gardening
Exterior wood conditioners
End-grain sealing

Avoid heavy varnishes that trap internal moisture.

Proper drainage and airflow are more critical than surface coating.

Wood failure typically begins at leg bases where water accumulates.

Adding plastic foot caps or elevating legs slightly above direct ground contact increases lifespan significantly.

Maintenance Cycle – Seasonal Stability

Raised beds with legs require less soil compaction maintenance but still need seasonal checks.

Spring:
Inspect screw tightness
Check for wood warping
Refresh top soil layer

Summer:
Monitor moisture retention
Inspect drainage holes

Autumn:
Remove decaying plant matter
Add compost layer

Winter:
Reduce excess moisture exposure
Ensure drainage remains open

Elevated beds experience greater temperature fluctuation due to airflow beneath them. Soil dries faster during hot months and cools faster during cold periods.

This is advantageous for root oxygenation but requires observation.

Structural Risks Beginners Overlook

Many raised beds fail not because of poor construction, but because of soil miscalculation.

Common errors include:

Overfilling soil beyond structural tolerance
Using heavy clay-rich soil blends
Skipping cross-bracing
Ignoring wind load

Water saturation increases soil weight dramatically. A fully saturated bed can weigh 25 to 40 percent more than dry soil volume.

Structural integrity must account for worst-case moisture conditions.

Soil Physics Inside Elevated Beds

An elevated garden bed does not behave like ground soil. The physics change immediately once soil is suspended above native earth. Airflow increases beneath the structure. Temperature fluctuates faster. Moisture drains more rapidly. These shifts alter root metabolism and microbial activity.

In ground planting, subsoil acts as a moisture buffer. Excess water moves downward and disperses laterally. In elevated beds, water exits vertically through drainage points without lateral diffusion. This creates a sharper wet-dry cycle.

Wet-dry cycling affects:

Root oxygenation
Microbial decomposition rate
Nutrient mobility
Soil compaction resistance

Roots require oxygen to perform cellular respiration. In poorly drained systems, oxygen displacement leads to anaerobic conditions. Elevated beds reduce anaerobic pockets but increase evaporation rates. This means watering must be intentional rather than frequent.

Elevated beds therefore provide stronger oxygen exchange but lower moisture retention stability.

This is structurally beneficial for resilient beginner plants, especially those discussed in Best Beginner Plants – Easy Plants That Grow Anywhere, because tolerant species adjust more easily to mild moisture variation.

Soil Composition Ratios for Elevated Systems

Standard potting mix alone is insufficient for elevated beds. Pure peat-heavy mixes dry too quickly when airflow circulates underneath the structure. Conversely, dense garden soil compacts and reduces drainage efficiency.

An optimized raised bed blend includes:

40 percent compost-rich topsoil
30 percent coconut coir or peat substitute
20 percent coarse sand or perlite
10 percent aged organic matter

This ratio balances moisture retention with oxygen permeability.

Coarse particles prevent excessive compaction. Organic matter sustains microbial life. Compost increases nutrient density without chemical overload.

Chemical fertilizers should be introduced cautiously. Elevated beds respond quickly to nutrient concentration changes because water drains faster.

Root Depth Compatibility by Crop Type

Not all crops benefit equally from elevated beds with limited soil depth. Soil depth determines root exploration range.

10 to 12 inches depth supports:

Leafy greens
Herbs
Shallow-root vegetables

14 to 18 inches depth supports:

Bush tomatoes
Peppers
Root vegetables

Less than 8 inches depth restricts root development significantly.

Root crops require uninterrupted vertical soil pathways. If base slats sag or drainage openings block root extension, crop growth slows.

Crop compatibility should therefore match bed depth rather than plant popularity.

Elevated beds excel at growing quick-cycle crops rather than long-rooting perennials.

Moisture Retention vs Evaporation Balance

Airflow beneath elevated beds accelerates evaporation. While this reduces fungal risk, it increases watering frequency during hot periods.

Balancing moisture requires:

Mulching topsoil surface
Monitoring drainage holes
Avoiding full plastic liners

Organic mulch reduces surface evaporation by limiting direct sun exposure. Straw, shredded leaves, or bark fragments are effective.

Excessive mulching, however, may reduce airflow and trap surface moisture. Balance is essential.

Moisture retention is not about constant dampness. It is about rhythmic wet-dry cycling that sustains oxygen supply.

Overwatering remains a primary risk even in elevated systems.

Environmental Comparison – Raised vs Ground vs Container

Understanding system differences prevents mismatched expectations.

Ground planting:

Stable temperature
Slower drainage
Greater soil depth
Higher weed pressure

Container planting:

Rapid drainage
High evaporation
Small soil volume
Limited root expansion

Raised garden bed with legs:

Moderate drainage
Moderate evaporation
Controlled soil environment
Reduced soil compaction
Lower weed intrusion

Elevated beds combine some benefits of containers with greater root space.

They reduce kneeling strain while preserving soil depth flexibility.

For beginners transitioning from containers, elevated beds offer structural stability without the unpredictability of ground soil.

Beginner Crop Pairing for Elevated Beds

Crop pairing optimizes space usage and reduces nutrient competition.

Effective combinations include:

Lettuce with basil
Spinach with green onions
Parsley with thyme

Avoid pairing deep-root crops with shallow-root greens in limited-depth beds.

Vertical layering strategy:

Top canopy crops – moderate height herbs
Mid-level crops – leafy greens
Root layer – shallow-root vegetables

This approach maximizes sunlight capture without overwhelming structural stability.

Raised beds with legs perform best when planted densely but not overcrowded.

Spacing must allow airflow between leaves to reduce humidity accumulation.

Advanced Modifications for Structural Optimization

As gardeners gain confidence, modifications improve durability and efficiency.

Optional enhancements include:

Adding caster wheels with lock mechanisms for mobility
Installing drip irrigation lines beneath soil surface
Incorporating removable side panels for soil replacement
Adding shade cloth brackets for summer temperature control

Mobility requires reinforced leg thickness. Wheels must support total saturated soil weight.

Drip irrigation reduces surface wetness and improves water distribution uniformity.

Advanced modifications should only follow structural mastery.

Long-Term Soil Renewal Strategy

Elevated beds deplete nutrients faster than ground beds due to drainage efficiency.

Annual renewal includes:

Removing top 2 inches of soil
Adding fresh compost
Mixing gently to avoid root disturbance

Full soil replacement is rarely necessary unless compaction occurs.

Microbial life sustains soil structure. Avoid over-sterilizing soil unless disease contamination occurs.

Elevated beds function best as semi-closed biological systems with incremental renewal rather than complete reset.

Why Raised Garden Beds With Legs Fail – Real Structural Causes

Most elevated garden bed failures are not caused by poor plant care. They are caused by underestimated structural load and environmental forces. The most common failures include joint separation, leg instability, wood rot at stress points, and soil base sagging. These issues emerge gradually rather than immediately. A bed may appear stable for months before weakness becomes visible. The primary failure pattern begins at corner joints where compression load concentrates. If screws are insufficient or wood density is low, micro-movements begin under repeated watering cycles. Over time, expansion and contraction from moisture changes loosen fasteners. Structural failure is therefore cumulative, not sudden.

Another frequent issue is base sagging. When slats are spaced too far apart or plywood lacks reinforcement beams, soil weight pushes downward unevenly. This causes internal bowing. Once sagging begins, drainage efficiency declines because water collects in low points. That pooling accelerates wood degradation.

Wind exposure is an overlooked factor. Elevated beds placed on balconies or patios experience lateral forces not present at ground level. Tall plants increase wind resistance. Without cross-bracing, even heavy beds may shift slightly during strong gusts. Repeated lateral movement weakens joint integrity.

Structural prevention is simpler than repair. Reinforcement at the beginning reduces long-term instability.

Weight Calculation – Understanding Saturated Soil Load

One cubic foot of dry soil weighs approximately 75 to 100 pounds depending on composition. When fully saturated, that weight can increase by 20 to 40 percent. A 4 ft by 2 ft bed filled 12 inches deep holds roughly 8 cubic feet of soil. This translates to:

Dry weight – approximately 600 to 800 pounds
Saturated weight – potentially exceeding 1,000 pounds

This load is distributed unevenly if watering is concentrated in one area. Structural design must assume maximum saturation weight, not dry weight.

Balcony gardeners must consider floor load capacity. Residential balconies have structural limits defined by building codes. While most small elevated beds fall within safe limits, multiple beds grouped together increase cumulative load.

Before placing large elevated beds on balconies, confirm floor capacity guidelines for residential structures. Elevated beds should sit on stable, flat surfaces to distribute weight evenly.

Balcony and Patio Safety Considerations

Raised beds with legs are popular for small-space gardening. However, elevation introduces tipping risk if weight distribution shifts unexpectedly. Key safety measures include:

Ensuring legs rest fully on level ground
Using rubber foot pads to prevent slipping
Avoiding placement near railing edges
Avoiding overly tall plant varieties that increase wind leverage

If mobility wheels are added, ensure they include locking mechanisms rated for full saturated load.

Wind exposure intensifies on higher floors. Elevated beds act as sail surfaces when leafy crops mature. Cross-bracing reduces lateral sway.

Safety is about structural anticipation rather than reaction.

Moisture-Related Wood Degradation

Wood degradation occurs where moisture remains trapped longest. Leg bases are particularly vulnerable because water may collect where wood meets surface. Elevated airflow reduces underside moisture, but direct rain exposure can accelerate surface rot.

Preventive measures include:

Sealing end grain
Elevating leg bases slightly above direct water contact
Using naturally rot-resistant wood species
Ensuring drainage holes remain unclogged

Surface cracks in cedar are normal and do not indicate structural failure. However, deep splitting near joint connections requires reinforcement.

Rot begins where oxygen and moisture coexist for extended periods. Proper drainage minimizes prolonged moisture retention.

Soil Compaction and Long-Term Performance

Over time, soil settles. In elevated beds, compaction reduces air pockets that roots require. Without periodic loosening or top-layer renewal, compaction restricts root penetration and reduces microbial activity.

Annual top-layer compost refresh improves:

Soil structure
Nutrient density
Moisture distribution

Deep turning is not necessary and may disturb root systems. Gentle surface integration is sufficient.

Elevated beds simplify soil control because soil is fully engineered rather than dependent on native subsoil.

Common Beginner Mistakes Specific to Elevated Beds

Certain errors are unique to raised beds with legs:

Using thin decorative boards that cannot support weight
Skipping cross-bracing for aesthetic reasons
Filling entire bed with heavy clay soil
Installing non-breathable plastic base liners
Overestimating leg stability on uneven ground

Aesthetic appeal should not override load stability. Structural integrity determines longevity more than surface appearance.

Additionally, some beginners attempt to build oversized beds without reinforcing mid-span supports. Wider beds require additional base beams to prevent sagging.

Balanced proportions maintain both safety and plant health.

Integration Into a Larger Gardening System

A raised garden bed with legs should not exist as an isolated structure. It functions best as part of a broader gardening system that includes plant selection, soil management, watering rhythm, and environmental awareness.

For gardeners still refining plant selection strategy, foundational tolerance principles are detailed in Best Beginner Plants – Easy Plants That Grow Anywhere. Structural stability and plant resilience operate together. A strong bed cannot compensate for unsuitable plant choice. Likewise, the right plant cannot thrive in unstable structure.

System integration reduces cumulative error.

When Raised Beds With Legs Are Not Ideal

Despite their advantages, elevated beds may not suit every situation.

Limitations include:

Higher initial material cost
Faster moisture evaporation in hot climates
Structural build complexity
Reduced soil buffering compared to in-ground planting

Large fruiting crops requiring deep root systems may perform better in ground beds with extended depth.

Raised beds excel in controlled small-scale production rather than large-scale agriculture.

Understanding limitation prevents misapplication.

Frequently Asked Questions – Raised Garden Bed With Legs
